a) Gear texturizing machine for synthetic filament fiber. Major purpose is to produce bulky and unevenness yarn.
b) All process conditions are determined by PLC. Setting can be carried out with the touch panel.
c) This machine is only available for one side structure. Utilizes a line shaft driving system, allowing for uniform spindle quality.
d) Each spindle has doffing timer and capable for wind set length.
e) Standard winding size is 8 inches (200mm). Available for 10 inches (250mm) as an option.
f) A block structure is 5 spindles and maximum number of spindles is 40.

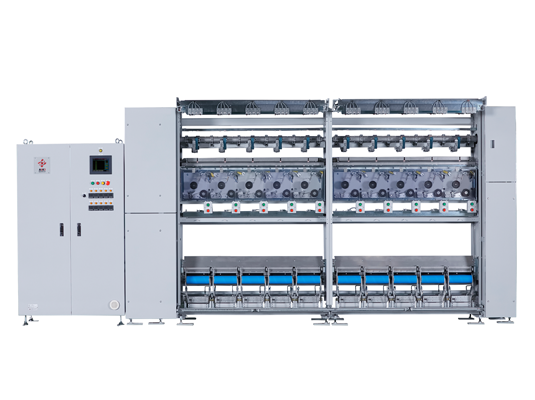

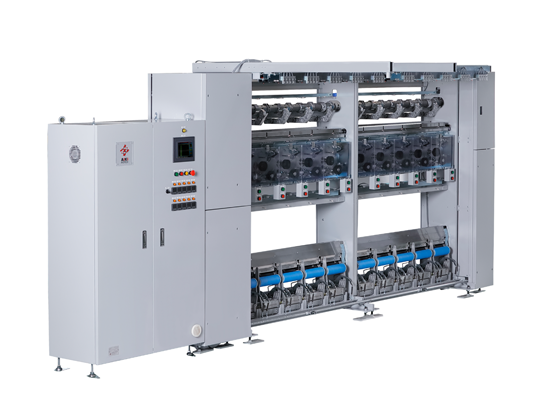

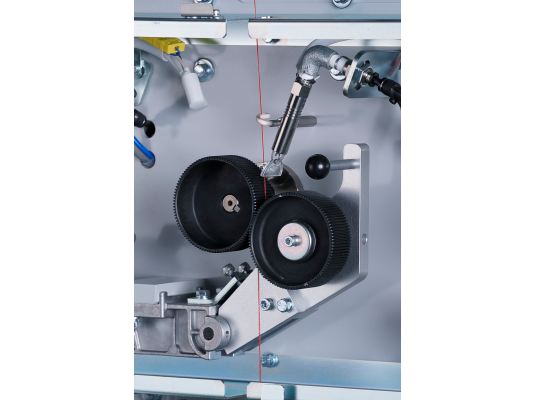

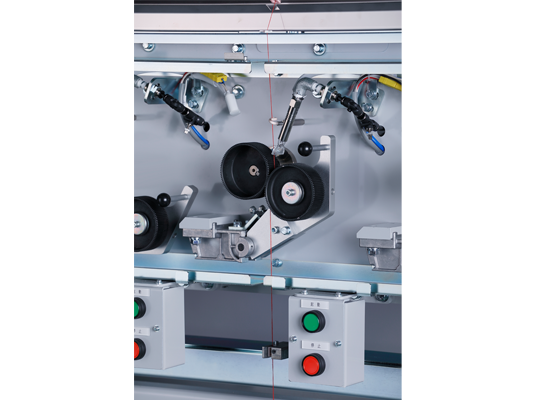

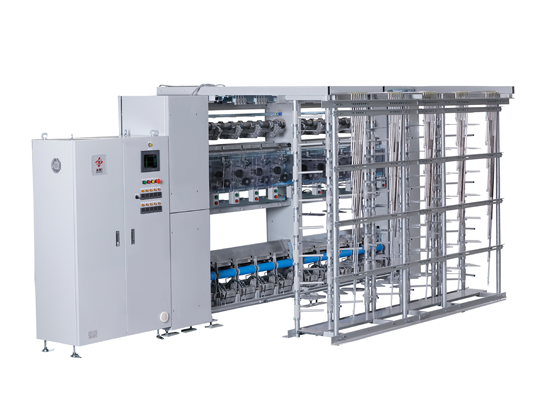

Photo Gallery
