a) Equipped with four feed rollers and plate heater.
POY continuous fibers such as nylon and polyester can be arbitrarily oriented.
ATY can be produced with compressed air by over-feeding the yarn into the nozzle at an arbitrary rate.
b) ATY loop can be adjusted with the second heater.
c) All processing conditions are determined by PLC. Setting can be carried out with touch panel.
d) Either side (R and L) of the machine can operate independently in different conditions.
e) Utilizes a line shaft driving system, allowing for uniform spindle quality.
f) Winding size is selectable from either 8 inches (200mm) or 10 inches (250mm).
g) The minimum number of spindles is 48. Extending spindles is available by 48 spindles (one block).
The maximum number of spindles is 336.

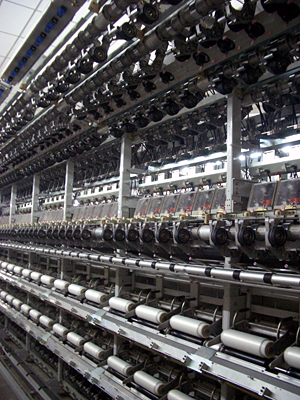

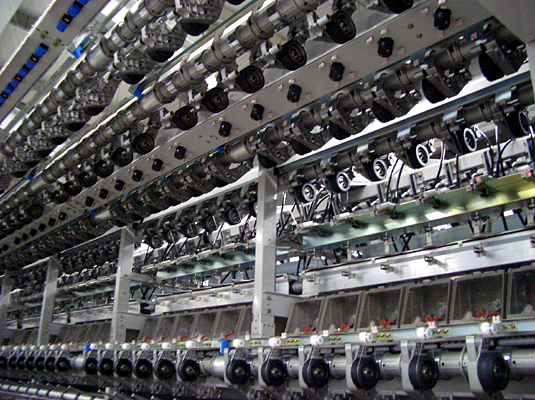

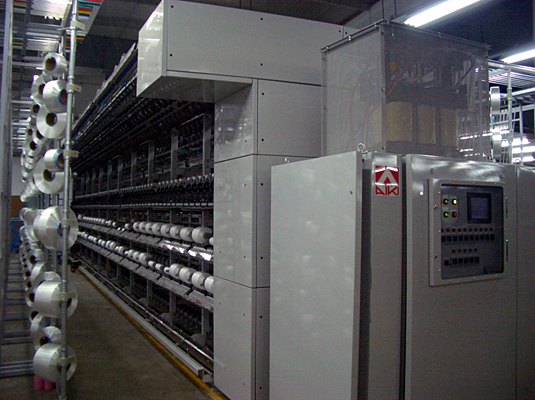

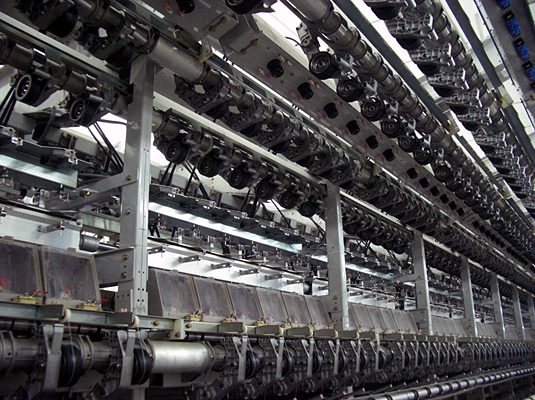

Photo Gallery
