a) Equipped with two feed rollers. ATY can be produced with compressed air by over-feeding FDY such as nylon and polyester into the nozzle at an arbitrary rate.
b) All processing conditions are determined by PLC. Setting can be carried out with touch panel.
c) Either side (R and L) of the machine can operate independently in different conditions.
d) Utilizes a line shaft driving system, allowing for uniform spindle quality.
e) Winding size is 10 inches (250mm).
f) The minimum number of spindles is 48. Extending spindles is available by every 48 spindles (one block).
The maximum number of spindles is 336.
g) Equipped with auto doffer. Utilizing built-in type allows space-saving compared with conventional external type.

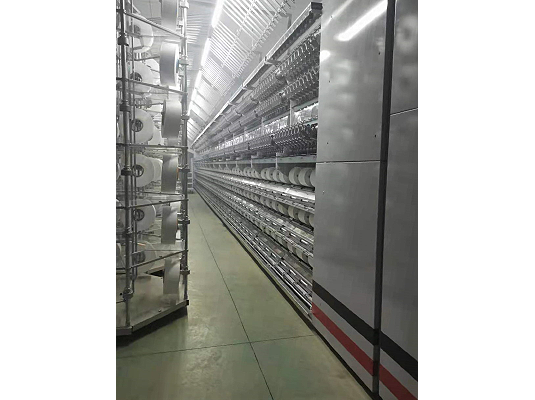

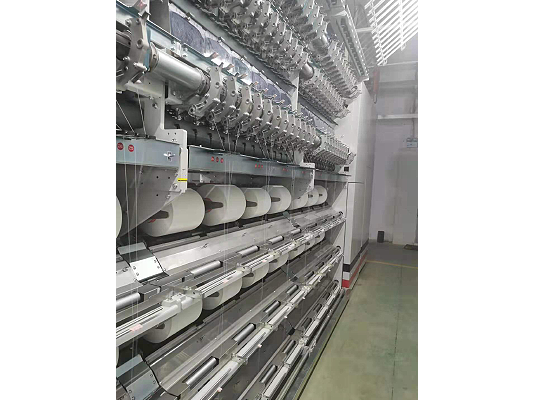

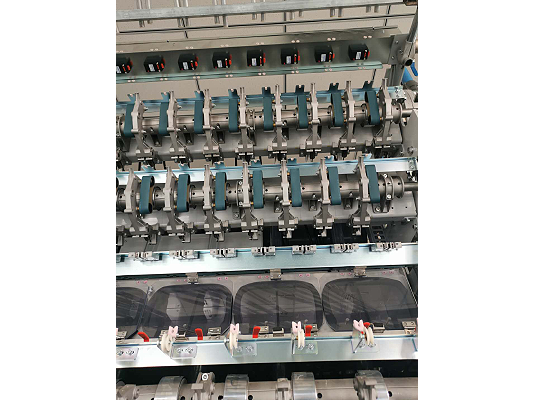

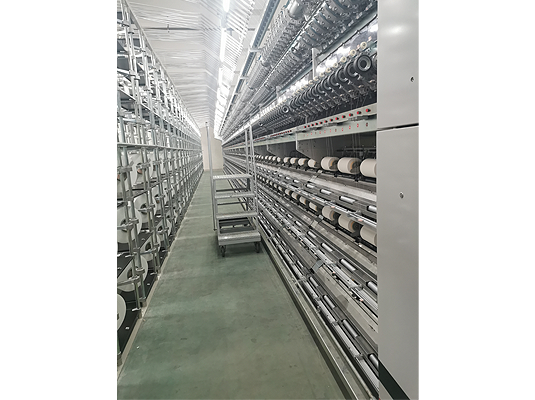

Photo Gallery

Products Spec Data Download
